Air Handlers
The air handler is the indoor component of a heat pump system. It includes the fan and the heating/cooling coil. The air handler is designed for a particular refrigerant, so it must be matched with the heat pump or air conditioner.
We offer many air handlers with variable and multi-speed features that can provide enhanced indoor comfort by slowly ramping up to your thermostat setting rather than simply turning on at full speed. This alleviates the “cold air blow” often associated with single speed air handlers, and dramatically reduces system noise.
Air Handler Product Offering

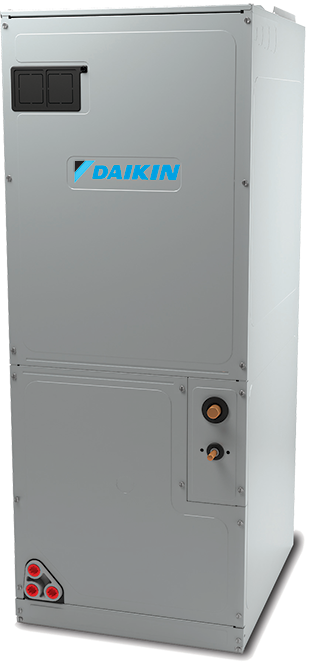

DVPEC Whole House Air Handler
| Model Family: DVPEC |
| Refrigerant Type: R-410A |
| Blower Motor: Variable-Speed ECM |
| Factory Warranty Parts: 12-Year Parts Limited Warranty |
View More
Manufacturer's Stated Benefits:
- Electronic Expansion Valve (EEV) for cooling and heat pump applications
- Compatible with the Daikin One+ smart thermostat and other Daikin communicating equipment
- CFM indicator
- All-aluminum evaporator coil
- Fault recall of six most recent faults
- Improved humidity and comfort control compared to units without ECM or EEV
- Horizontal or vertical configuration capabilities
- 21-inch depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back help to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Tool-less filter access

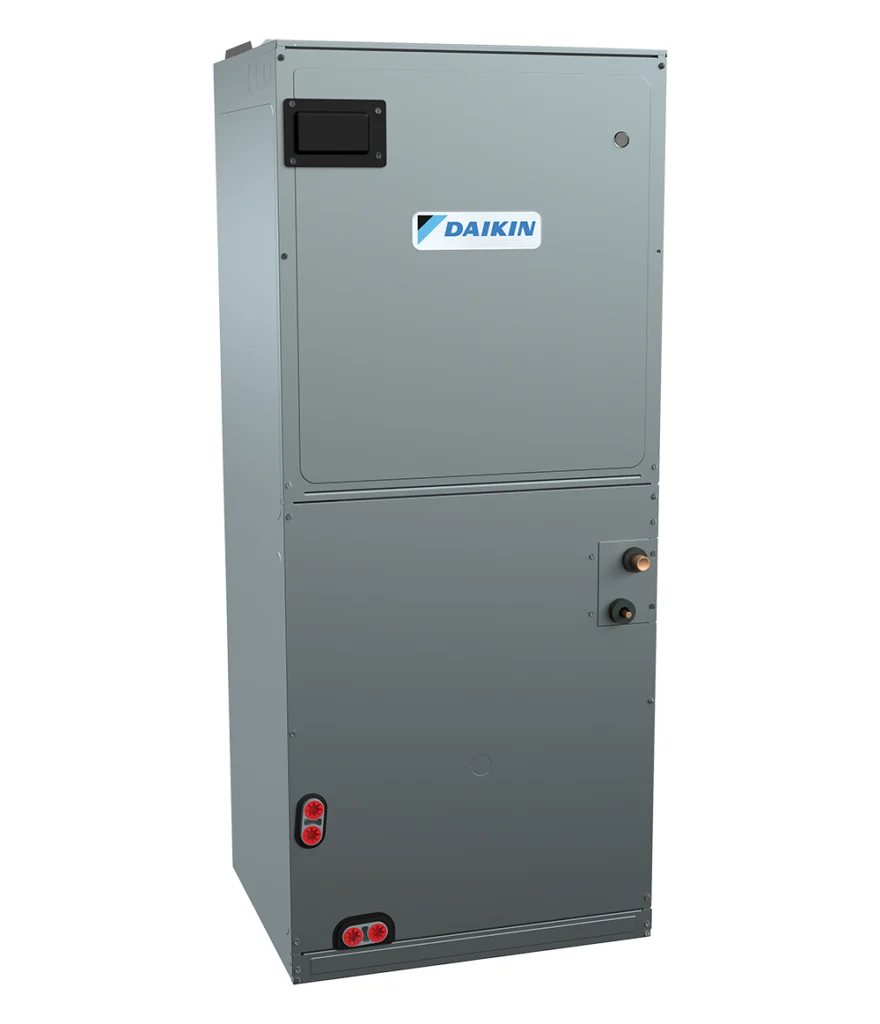

DVFEC Whole House Air Handler
| Model Family: DVFEC |
| Refrigerant Type: R-410A |
| Blower Motor: Variable-Speed ECM |
| Factory Warranty Parts: 12 year parts Limited Warranty |
View More
Manufacturer's Stated Benefits:
- Electronic Expansion Valve (EEV) for cooling and heat pump applications.
- Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Thermostat provides adjustable low CFM for efficient fan-only operation
- All-aluminum evaporator coil
- Fault recall of six most recent faults
- 3 kW – 25 kW electric heater kits
- Horizontal or vertical configuration capabilities
- 21 inch depth for easier attic access
- Tool-less filter access
- Galvanized and leather grain-embossed finish
Multi-Positioin Air Handler
| Model Family: DVPTC |
| Refrigerant Type: R-410A |
| Blower Motor: Variable-speed ECM blower motor |
| Factory Warranty Parts: 12-Year Parts Limited Warranty |
View More
Manufacturer's Stated Benefits:
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- ComfortNet â„¢ Communicating System compatible
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- Auto configuration of the airflow and tonnage in communicating mode
- 3 kW - 25 kW electric heater kits
- All-aluminum evaporator coil
- Horizontal or vertical configuration capabilities
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- Rigid 21 inch deep cabinet for easy attic access
- CFM indicator
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Fault recall of six most recent faults
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Provides adjustable low CFM for efficient fan-only operation
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Improved humidity and comfort control
- Galvanized, leather grain-embossed finish
- Built-in compatibility with multi-stage heat pump and cooling applications
- Glue-less cabinet insulation retention
- Tool-less filter access

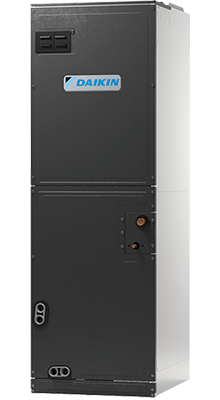

Multi-Position Air Handler
| Model Family: ASPT |
| Refrigerant Type: R-410A |
| Blower Motor: Multi-Speed ECM |
| Factory Warranty Parts: 12-Year Parts Limited Warranty |
View More
Manufacturer's Stated Benefits:
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- All-aluminum evaporator coil
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Coil mounting track for quick repositioning
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Cabinet air leakage less than 2.0% at 1.0 inch H?O when tested in accordance with ASHRAE standard 193
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Cabinet air leakage less than 1.4% at 0.5 inch H?O when tested in accordance with ASHRAE standard 193
- Galvanized, leather grain-embossed finish
- 3 kW - 25 kW electric heater kits
- Glue-less cabinet insulation retention
- Rigid SmartFrameâ„¢ cabinet
- Tool-less filter access
- Horizontal or vertical configuration capabilities
